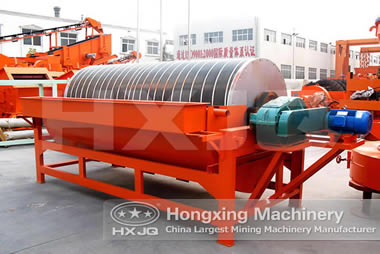

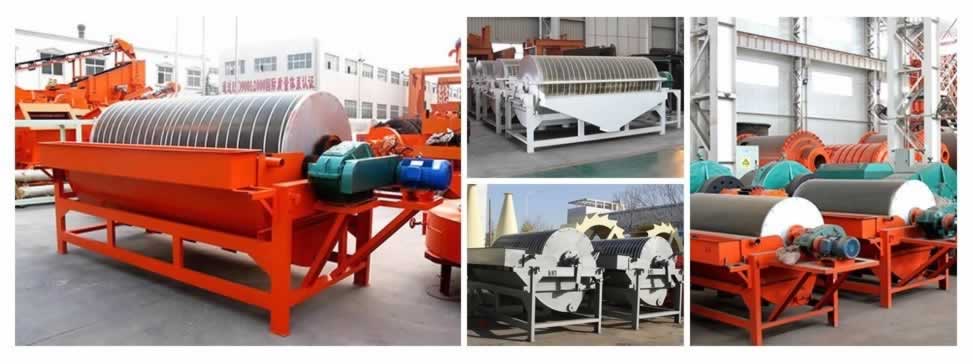

Magnetic separator
Shell diameter: 600 - 1500/mm
Shell length: 1200 – 3000/mm
Shell rotation speed: <14 - <35r/min
Feeding size: 2-0 to 3-0/mm
Power: 1.5 - 11/kw
Processing capacity: 10-20 to 170-280t/h
Shell diameter: 600 - 1500/mm
Shell length: 1200 – 3000/mm
Shell rotation speed: <14 - <35r/min
Feeding size: 2-0 to 3-0/mm
Power: 1.5 - 11/kw
Processing capacity: 10-20 to 170-280t/h
Magnetic separators are devices which are designed to assist with the purification and separation of process streams. They are used in industries like mining, and smaller versions are utilized in scientific labs to process some types of samples. Numerous companies make magnetic separators for various applications, and there are several different styles available for people to choose from, depending on the application and their needs.
The magnetic system of magnetic separator is a compound of fine ferrite material and rare earth magnets and the average magnetic induction intensity of the surface of the cylinder is 100~600mT. According to specific need, customers can choose from many kinds of magnetic separators with different surface magnetic intensity such as downstream type, semi-reflux type and reflux-type.
One of the common uses for a magnetic separator is the removal of so-called tramp metal, undesirable iron which can foul a process stream. Magnetic separators are also used to remove materials which could damage or foul equipment, in a pre-processing step. Separators can also be used to sort various types of metal, with a series of separators varying in intensity to pull out strongly and weakly magnetic materials at different times.
| Model | Shell diameter （mm） |
Shell length （mm） |
Shell rotation speed （r/min） |
Feeding size （mm） |
Processing capacity （t/h） |
Power （kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
