Capacity:0.65-2 to 108-615t/h
Feeding size:≤20 - ≤25/mm
Ball load:1.5 - 338/t
Discharging size:0.074-0.89/mm
Motor power:18.5 - 4500/kw
Total weight :5.5 – 525/t
Material handling:cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

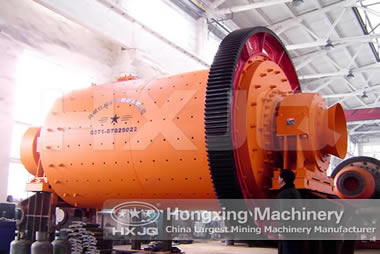

Ball mill is a type of widely used ball grinding mill in cement and silicate products, new building material, refractory, fertilizer, ferrous and nonferrous metal and glass ceramics and other mineral production industries and all kinds of ores and other grind-able materials can be ground by dry or wet ball mill. According to different ways of discharge it can be divided into two kinds of lattice type and overflow type.
The structure of our high-efficient and energy-saving ball mill is different from the traditional ball mill. The body and the bottom frame of the ball mill like wet ball mill is integral, so that it can be craned and put on the base in one step. The principal axis of the ball grinding mill adopts double-row centripetal spherical roller bearing. Its energy consumption is reduced by 30%, and the materials discharging mode is force by grate instead of control discharge by overflow, so that the fineness of milled materials is promoted, and the processing volume is increased by 15-30%.
| Model | Shell rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity | Motor power(kw)(kw) | Weight(t) |
| (t/h) | |||||||
| Ø900*1800 | 36--38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ø900*3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ø1200*2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ø1500*4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ø1830*3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ø1830*4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ø1830*6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ø1830*7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ø2100*3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ø2100*4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 38 |
| Ø2100*7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ø2200*4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ø2200*6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Ø2200*7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ø2200*7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ø2400*3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ø2700*4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ø3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | ----- | 800 | 137 |
| Ø3600*4500 | 17 | 90 | ≤25 | 0.074-0.4 | ----- | 850 | 158 |
| Ø3600*6000 | 17 | 110 | ≤25 | 0.074-0.4 | ----- | 1250 | 175 |
