Double Motor power: 110 -- 400/kw
Rotation speed: 60-90 -- 225-260/t/h
Soft material: 35 -- 50/mm
Feed at center: 60-90 -- 225-260/t/h
Total weight : 11.8 -- 25.6/t
Power of oil tank heater: 2KW
Feature: Structure is simple to install, easy maintenance, low running costs

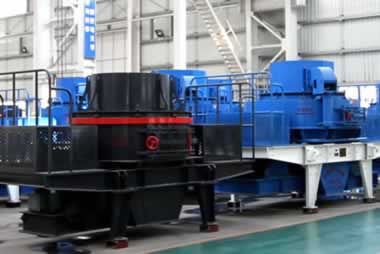

The third generation sand maker, which is also known as energy-saving and high-efficiency tertiary impact crusher, is a comprehensive crusher with the advantages of hammer crusher and impact crusher. With the obvious advantages such as large arc crushing space and advanced crushing theory–"stone impacting stone", this kind of sand maker gradually replaces the vertical shaft impact crusher in the market.
1. On the basis of the second generation sand maker, this machine adds the balance wheel which saves the electric energy and increases the kinetic energy, thus improving the production efficiency greatly. At the same time, this machine adds the back plate adjusting device which makes it easier for adjusting the material fineness. Without opening the enclosure, the material fineness can be adjusted.
2. The third-generation has observation door not only at the back of the machine, but at the side of the machine, which makes maintenance and observation for the running status of equipment more convenient.
3. This machine adds the material back plate at both sides of the grated adjusting device. Thus, it has the function for crushing material multiply.
| Specification | Max.feeding size (mm) |
Power (kw) |
Rotation speed of impeller (r/min) |
Capacity (t/h) |
Dimensions(L×W×H) (mm) |
Total weight (kg) |
| HX06 | 35 | 37-55 | 2000-3000 | 12-30 | 2500×1620×2600 | 5600 |
| HX07 | 45 | 55-75 | 1500-2500 | 25-55 | 2700×1760×2800 | 7600 |
| HX09 | 50 | 110-150 | 1200-2000 | 55-100 | 3900×2000×3070 | 12600 |
| HX10 | 60 | 150-180 | 1000-1700 | 100-160 | 4600×2350×3450 | 17300 |
| HX12 | 60 | 264-320 | 850-1450 | 160-300 | 4500×2400×3700 | 22500 |
| HX13 | 60 | 320-400 | 800-1193 | 200-360 | 5200×2700×3800 | 27600 |
| Model | HXVSI-7611 | HXVSI-8518 | HXVSI-9526 | HXVSI-1140 | |
| Capacity (t/h) |
Feedboth at center and at sides | 120-180 | 200-260 | 300-380 | 450-520 |
| Feed at center | 60-90 | 100-130 | 150-190 | 225-260 | |
| Max.Feeding size(mm) | Sofe material | 35 | 40 | 45 | 50 |
| Hard material | 30 | 35 | 40 | 45 | |
| Rotation speed (r/min) |
1700-1890 | 1520-1690 | 1362-1510 | 1180-1310 | |
| Doubole Motor power (kw) |
110 | 180 | 264 | 400 | |
| Overall dimension (L×W×H) (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 |
5000×2700×3300 |
|
| Total weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | |
| Power supply | 380V 50HZ | ||||
| Vibrating sensor | Detect range 0.1-20mm/s continous and adjustable | ||||
| Lubrication and hydraulic station | Double motor power | 2×0.31kw | |||
| Safety assuance | Double oil pumps assure enough oilsupply: automantic switch off with no oil stream or hydraulic temperature with cool water in summer with motorin winter. | ||||
| Overall dimension (L×W×H) (mm) |
820×520×1270 | ||||
| Power of oil tank heeater | 2KW | ||||
