Rod mill
Diameter:900 - 3200/mm
Length:1800 - 4500/mm
Shell rotation speed:18 - 38r/min
Feeding size:≤25 - ≤50/mm
Discharging size:0.833-0.147/mm
Power:18.5 - 630/kw
Total weight:5500 - 137000/kg
Diameter:900 - 3200/mm
Length:1800 - 4500/mm
Shell rotation speed:18 - 38r/min
Feeding size:≤25 - ≤50/mm
Discharging size:0.833-0.147/mm
Power:18.5 - 630/kw
Total weight:5500 - 137000/kg

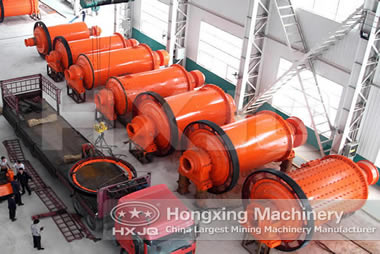

Ore grinder is an efficient tool for grinding many materials into fine powder. The ore grinding mill is used for grinding many kinds of mine and other materials, or selecting the mine. Ore grinding mill is widely used in building material, chemical industry, etc. Hongxing Machinery can manufacture ore grinder, vertical ore grinder, superfine ore grinder, coarse powder mill, rod mill and so on. The rod mills accept a feed size up to 2" and produce a typical product size of 5 to 10 mesh when operating in open circuit and as fine as 35 mesh in closed circuit with a screen or other sizing device.
.jpg)

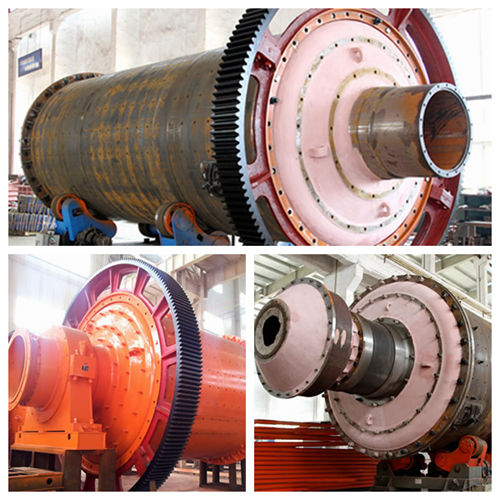

The rod mill, a tumbling mill characterized by the use of rods as grinding media, is used for grinding ores, coal/coke, and other materials for both wet and dry applications. The rod mill performs best when making products having a top size of 4 mesh to 16 mesh operating in open circuit, or as fine as 35 mesh operating in closed circuit with a screen or other sizing device. The rod mill accepts feed ore as coarse as 1 1/2” top size although better performance is obtained by restricting ore feed size to 3/4”.
The rod mill is generally more efficient than the ball mill due to its more effective cascading action and the greater bearing surface offered by the rods. This means it can operate at lower speeds and with less grinding agents and producing less undesirable slimes byproduct. Rod mills do, however, require more attention during operation to prevent rod tangles and are generally ineffective at dry milling operations. They are also limited to a maximum rod length of approximately 20 feet (6 meters) which means they are generally smaller than ball mills. Rod mills also exhibit more liner and lifter wear than other mill types due to the comparatively high weights of the rods.
| Model |
Shell Specifications (mm)
|
Shell rotation speed (r/min) |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (kg) |
|
| Diameter | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5500 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6100 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 12000 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 16800 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 29000 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 34800 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 37000 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 54000 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 86000 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 94000 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 137000 |
