Chinaware ball mill
Feeding capacity: 0.05 - 15t/time
Shell rotation speed: 13.5 - 50r/min
Reference motor: 2.2 - 75/kw
Feeding capacity: 0.05 - 15t/time
Shell rotation speed: 13.5 - 50r/min
Reference motor: 2.2 - 75/kw

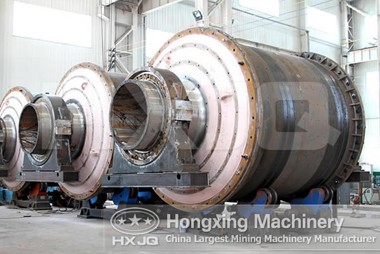

Chinaware ball mill or ceramic ball mill is mainly used for mixing, milling the materials. It works with less energy but produces high fineness product. The ceramic ball mill is a piece of new energy-saving grinding equipment designed by domestic processing machinery experts after absorbing the newest grinding technology home and abroad. It not only improves the productivity and crushing ration, but expands the application range.
00.jpg)
The ceramic ball mill has two types, wet mills and dry mills. The machine could use different lining boards according to product requirement to satisfy different customer’s requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is pided into integral type and freestanding type. Advantages of the ceramic ball mill are lower investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc.
| Model | Feeding capacity (t/time) |
Shell rotation speed (r/min) |
Reference motor (kw) |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
