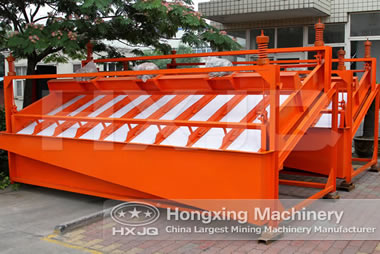

High frequency screen
Supply Ability:30 Set/Sets per Month
Place of Origin:Henan China (Mainland)
Production capacity:15-48t/h
Feature:High efficiency, Small amplitude, Screening high frequency
Supply Ability:30 Set/Sets per Month
Place of Origin:Henan China (Mainland)
Production capacity:15-48t/h
Feature:High efficiency, Small amplitude, Screening high frequency
High frequency screen is widely used in the industries of dry beneficiation, coal preparation, chemical, brick-making, food, pharmaceutical, caustic soda, fertilizers, paper and other industries in a variety of materials, wet sieving, grading, dewatering. High frequency ore screen is also used in fine-grained classification operation for the concentrator grinding and classification process, whose screening efficiency can reach to more than 70% under one condition like that the rational feeding concentration, discharging granularity (-200 Mesh size fraction content), and the demand under the screen size to the difference between feed size less than 30 percent under the conditions. High-frequency screen consists of vibration exciter, ore slurry distributor, screen frame, machine frame, suspension springs and sieve, etc.
High efficiency, small amplitude and high frequency of screening; regarding to the working principle, it differs from the conventional screens. By means of breaking of the surface tension of slurry, together with small granularity’s high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increases the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore, it creates good condition for separating materials, especially for the small size.
| Specification | Screen area (㎡) | Thickness of input material (%) | Processing capacity (t/h) | Power(kw) |
| GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
| GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
| GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
| GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
