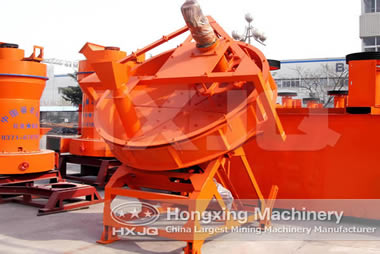

Disk grain making machine
Supply Ability:20 Set/Sets per Month
Warranty:12 Month
Production capacity:4-24t/h
Feature:Flexibility,Reduced power consumption,Smooth starting
Supply Ability:20 Set/Sets per Month
Warranty:12 Month
Production capacity:4-24t/h
Feature:Flexibility,Reduced power consumption,Smooth starting
Disk grain making machine is the special granulation equipment which adopts overall circular structure, and the granulation rate may reach above 93%. Disk grain making machine can not only be used for producing agricultural fertilizer, our engineers also develop the method to make it applied in the bioplastic granulation.
Advantages of this machine are: simple structure, easy-to-adjust and excellent in performance. This machine is suitable for conveying of materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.
The disk granulator is mainly made up of feeding, mixing, granularity producing, conveyor and lubricating system. The production of it has the condition that the moisture content of raw material cannot be more than 15% with the powder form the hopper into the feed auger by adjusting the variable motor speed in order to achieve the suitable material flow, which is fell into the blender in order to mix with the stirring rod steam mixing quenched and tempered. And if you need to add the molasses or grease, which should be joined with the steam from the mixing tube with quenched and tempered, and whose amount cannot be more than 3%, otherwise, it is not easy to form the product granularity after quenching and tempering with the powder temperature of up to 64 to 85℃ and with the humidity of 14 to 16%. And the last step is to remove the iron impurity from the absorption device and finally can be into the repression room for granulation.
|
Specification
(m) |
Rotation speed
(r/min) |
Production capacity
(t/h) |
Motor
(kw) |
Adjustment range of obliquity
|
Dimensions
(m) |
Total weight
(kg) |
|
Φ2.2
|
14.25
|
4-8
|
7.5
|
35-55
|
2.8×2.75×2.58
|
2850
|
|
Φ2.5
|
11.81
|
5-10
|
7.5
|
35-55
|
3.2×2.3×3
|
3250
|
|
Φ2.8
|
11.21
|
12-16
|
7.5
|
35-55
|
3.4×2.6×3.1
|
3710
|
|
Φ3.0
|
11.3
|
15-18
|
11
|
35-55
|
3.7×2.7×3.3
|
4350
|
|
Φ3.2
|
9.6
|
15-20
|
11
|
35-55
|
3.9×2.7×3.4
|
5110
|
|
Φ3.6
|
9.1
|
18-24
|
15
|
35-55
|
4.3×3.1×4.0
|
6510
|
