Cement mill
1. High yield and low energy consumption
2. System equipment and the process is simple, low investment and fsctory building covers an area of less
1. High yield and low energy consumption
2. System equipment and the process is simple, low investment and fsctory building covers an area of less

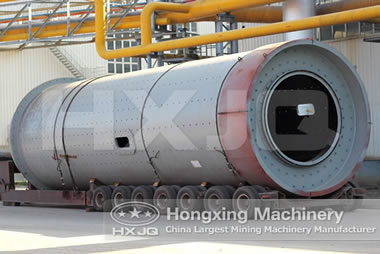

A cement mill is a type of cement equipment or cement making plant used to grind the hard, nodular clinker from the cement kiln into the fine grey powder that is cement. Most cement is currently ground in cement equipment like ball mills and also vertical roller mills which are more effective than ball mills.
There are several cement mill types which are able to grind clinker, of which the ball mill is the most common cement making plant. Ball mills, as the widely used cement equipment with the most reasonable cement mill price, consist of cylinders partially filled with large numbers of steel balls which employ their rolling action to crush the raw material when each cylinder is rotated. High pressure roller mills are occasionally used to grind clinker although their usage has not yet gained broad acceptance.
Our cement mill price is quite reasonable and it has good cement machinery performance. The clinker sintering or heat combination process produces a coarse, nodular material of particular hardness which requires fine grinding prior to cement production of the cement making plant. Particle sizes of below 45 µm are required which, due to clinker's hardness, requires a particularly efficient milling process of the cement plant. Although there are several mill types capable of grinding clinker, the most commonly used cement mill process is the ball mill.
Several other milling processes of the cement plant are capable of grinding cement clinker although none are as suitable as ball mills. The most common alternative cement mill process is the high pressure roller mill. This process of the cement plant makes use of sets of hardened steel rollers which grind the clinker. Although these mills with reasonable cement mill price are effective and less costly to run, the narrow particle size they produce is sometimes problematic. Roll mills, as a famous cement machinery type, are, however, often used as first stage processes in ball mill installations as an initial crushing stage, thus lowering overall process times and increasing productivity of the cement machinery.
| Product specification (m) |
Milling form | Transmission form | Gear box | Motor power (kw) |
Production capacity (t/h) |
Total weight (t) |
|
| Model | Speed reduction ratio | ||||||
| Φ1.83×7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ2.2×7.5 | Circle flow | Brim | ZD70 | 5 | 380 | 8-10 | 64.8 |
| Φ2.2×11 | Open flow | Central shaft | D110 | 35.5 | 630 | 12-13 | 104.6 |
| Φ2.2×13 | Open flow | Central shaft | D110 | 35.5 | 630 | 16-18 | 114 |
| Φ2.4×13 | Open flow | Central shaft | D110 | 35.5 | 800 | 20-23 | 130.6 |
| Φ2.6×13 | Open flow | Central shaft | MFY100 | 19.5 | 1000 | 28-32 | 158 |
| Φ3×9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 167 |
| Φ3×11 | Circle flow | Central shaft | D140 | 42.8 | 1250 | 36-47 | 180 |
| Φ3.2×13 | Open flow | Central shaft | D140 | 36.5 | 1600 | 45-50 | 225 |
| Φ3.5×13 | Circle flow | Brim | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
| Φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
| Φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
| Φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
