Power: 37-45-- 630-710/kw
Capacity: 30-70 to 600-800/th
Total weight: 12 --83.21/t
Supply Ability: 20 Set/Sets per Month
Max. Feeding side length: 300-- 700/mm
Feed opening: 400×730 --1260×2040
Feature: small size, simple structure, high crushing ratio, low energy consumption, high production capacity

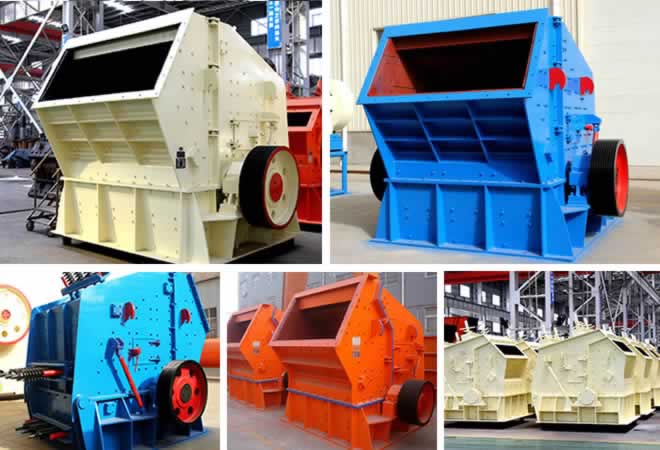

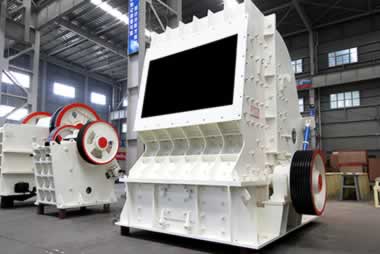

Impact crusher(Impact breaker) is a new type of high-efficiency crushing machine with the features of small size, simple structure, big reduction ratio, low energy, large production capacity, equal product granularity and selective crushing principle, for this reason, it is a promising machine.
Mineral impact crusher is divided into single-rotor impact crusher and double-rotor impact crusher according to structural feature. Single-rotor impact crusher is divided into reversible turn and non-reversible turn according to steering of rotor. There are impact stone crusher, mobile impact crusher, etc.
.jpg)
Market price of Impact breaker depends on model. We have many Impact crushing machines with different models for you to choose from. Hongxing Machinery is a professional company manufacturing China impact crusher. Welcome new and old customers to choose!
Even though impact crushing machine of different manufacturers are different in model and mass, their working principle and structure are same. So Impact crushing machine mainly consists of board hammer, impact plate, board hammer pedestal, rotor, and feed port etc.
When the materials enter the field of the hammer, it is impacted by the hammers, thrown onto the impact plate, and crushed. The stuff springs from the impact plate, is impacted by the hammers again, and thrown onto impact plate. This process will last until the stuff meets the requirement and falls from the machine. Adjusting the distance between impact frame and rotor frame can change the shape and size of the output. When some foreign stuff enters the machine, the impact frame will fallback, the stuff falls from the machine. This device can prevent machine from damage.
| Model | Specifications (mm) |
Feed opening (mm) |
Max.feeding side length (mm) |
Capacity (t/h) |
Power (kw) |
Total weight (t) |
Dimensions ( L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 400 | 50.6 | 3959×3564×3330 |
