Feed opening: 150×250 - 300×1300/mm
Processing capacity: 1-3 - 16-105/th
Max. Feeding size: 125 - 250/mm
Motor power: 5.5 - 55/kw
Total weight: 0.8 - 15.6/t
Supply Ability: 20 Set/Sets per Month
Feature: Simple structure, stable operation

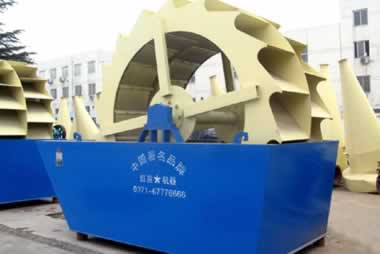

Sand washer, which is used for cleaning and washing the dust and powder away from the sand, is usually equipped with VSI impact crusher in the sand making produ. It aims at improving the quality of sand. Sand washer drives the impeller in the water groove to move like a circle transmitted by motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove. Sand washing machine is widely applied in the industries of quarry, minerals, building, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.
.jpg)
The sand washer is driven by motor and decelerated machine, and the impeller in the driving gullet revolves periodically, so that the sand, gravel and slag particles are mixed, overturned and washed in the gullet to remove surface impurities of gravel and damage the water vapor-coated layer of sand, facilitating dehydration. Meanwhile, strong water flow by adding water to clean small proportion impurities. Finally, the washed materials are dehydrated and discharged in the impeller.
|
Specification
|
XS2200
|
XS2600
|
XS2900
|
XS3500
|
|
Wheel bucket diameter
(mm) |
2200
|
2600
|
2900
|
3500
|
|
Rotation Speed
(r/min) |
1-2
|
1-2
|
0.8-1.5
|
0.8-1.2
|
|
Processing capacity (t/h)
|
15-30
|
20-50
|
50-100
|
120-200
|
|
Motor power
(kw) |
4
|
5.5
|
7.5
|
11
|
|
Total weight
(kg) |
4300
|
5600
|
8100
|
9900
|
|
Dimensions (L×W×H)
(mm) |
3150×1910×2280
|
3520×2390×2690
|
3820×2640×3200
|
4420×2930×3800
|
