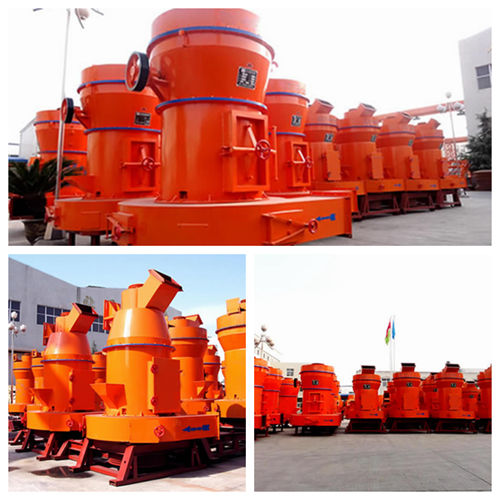

High strength pulverizer
Feeding size:≤15 - ≤25/mm
Rotate speed of central shaft: 130 - 274r/min
Diameter of pulverizing ring: 525 – 1050/mm
Diameter of pulverizing roller: 150 - 310/mm
Height of pulverizing roller: 100 - 170/mm
Size of finished product: 0.125-0.033 to 0.125-0.044/mm
Range of application: Used for the high and fine powder making of over 280 kinds of non-flammable and combustible materials whose moisture is below 6% in such industries as mine, metallurgy, chemistry and building material.
Inquiry Us
High strength pulverizer is used for grinding barite, limestone, kaolin, ceramics and slags, etc, with the hardness below scale 9.3 of Mohs and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgy, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-425 (1000 the finest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.
.jpg)
Working Principles of High Strength Pulverizer
In the main frame, a 100-1500 kg powered pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the raymond grinder under the same power condition and the production output is raised to substantial degree.
When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.
Technical Data
| Model |
High-strength97 |
High-strength93 |
High-strength92 |
High-strength87 |
High-strength76 |
High-strength66 |
High-strength62 |
| Feeding Size(mm) |
≤25 |
≤25 |
≤25 |
≤25 |
≤20 |
≤15 |
≤15 |
| Output Size(mm) |
0.125-0.033 |
0.125-0.033 |
0.125-0.033 |
0.125-0.033 |
0.125-0.033 |
0.125-0.044 |
0.125-0.044 |
| Shift Output of Different Material Fineness(t) |
4-52 |
3.5-40 |
3-36 |
2.8-33 |
1.5-25 |
1-20 |
0.6-9 |
| Rotation Speed of Central Shaft(r/min) |
130 |
140 |
148 |
161 |
170 |
190 |
274 |
| Ring Diameter(mm) |
1050 |
1006 |
973 |
907.5 |
850 |
725 |
525 |
| Roller Diameter(mm) |
310 |
300 |
300 |
270 |
260 |
210 |
150 |
| Roller Height(mm) |
170 |
160 |
160 |
150 |
150 |
150 |
100 |
| Main Motor |
Y225S-4-37 |
Y225M-8-30 |
Y225M-8-30 |
Y225M-8-22 |
Y225S-8-18.5 |
Y200L-8-15 |
Y160M-6-7.5 |
| Fan Motor |
Y200L-4-37 |
Y180M-2-22 |
Y180L-4-22 |
Y180M-4-18.5 |
Y160L-4-15 |
Y160M-4-11 |
Y132S-4-5.5 |
| Analyzer Motor |
YCT200-4A-5.5 |
Y112M-6-3 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y90L-6-1.1 |
