1. Suitable for grinding material with high hardness
2. The shape of the final products is circular
3. No pollution for the powder with ceramic ball
4. Stable performance Easy installation
5. The capacity and fineness can be adjusted by adjusting the diameter of the ball.

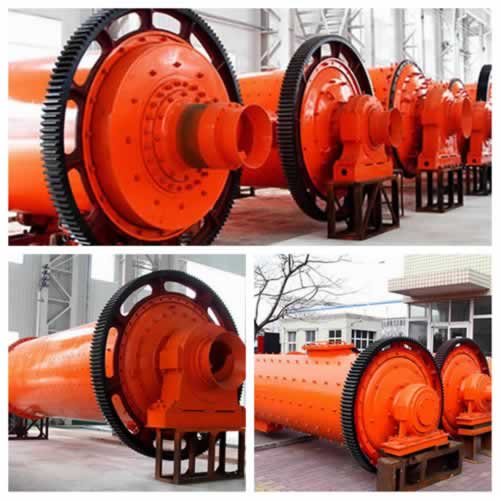

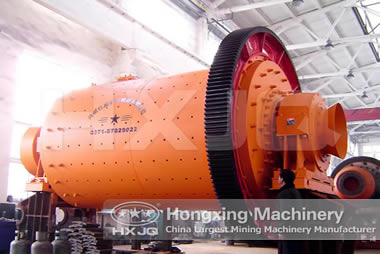

Ball machine is mainly used for grinding materials in mineral, cement, refractory, chemical industry, etc. Ball machine has dry and wet ways. When ball machine works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased. When dry ball machine works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of ball machine, and then negative pressure is formed in the Ball machine to increase flow ability of material, so the capacity is increased.
.jpg)
(1) increase the effective volume
(2) increase the filling rate and transfer rate
(3) change the shape of the grinding media
| Model | Shell rotation speed （r/min） |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight (t) |
| Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
| Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| Ф2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
| Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 69 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | As per process conditions | 630 | 137 |
| Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | As per process conditions | 850 | 158 |
| Ф3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | As per process conditions | 1250 | 175 |
| Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
| Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
| Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
| Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
| Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
| Ф5030×8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
| Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |
