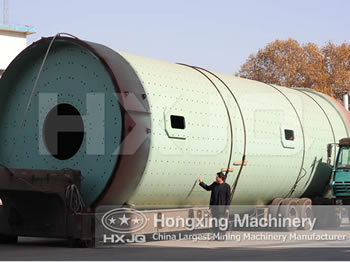

Cement Miller
A cement mill is the equipment used for grinding the hard, nodular clinker discharged from the cement kiln and being sent into the fine grey powder.
A cement mill is the equipment used for grinding the hard, nodular clinker discharged from the cement kiln and being sent into the fine grey powder.
Henan Hongxing Mining Machinery Co., Ltd. is a professional cement mill manufacturer and exportor in China. The cement mills produced by our company has been delivered to Europe, United States, Asia, Middle East, Russia, Africa. We are expanding more cooperation partners all over the world.
A cement mill is the equipment used for grinding the hard, nodular clinker discharged from the cement kiln and being sent into the fine grey powder. Most cement is currently ground in ball mills.
In the cement grinding, grinding mill will be used to grind the cement clinker to appropriate size to increase the size of its hydration and accelerate hydration rate so that it can meet the cement paste setting and hardening requirements. There are many kinds of cement plants, such as ball mill, high pressure suspension grinding mill, coarse powder grinding mill, Raymond mill, vertical mill, etc. In the exact production site, we can choose suitable Cement making machine according to the exact requirement and material information. This procedure is almost the last process of cement production. So cement grinding will directly influence the products quality. The cement mill price will also be affected by these factors .
In the cement raw mill plant, we use cement vertical grinding mill and ball mill for cement clinker further grinding. At this stage, vertical cement clinker mill works by employing the pressure of cylinder leakage to break the materials; cement ball clinker mill is dependent on the steel ball grinding upon supplies. Hongxing cement clinker grinding equipment functions with greater capacity and saves energy greatly by working with an electrical automation system which optimizes the grinding process.
According to the cement clinker grinding procedure, Hongxing Machinery, as a professional cement clinker mill manufacturer, can supply you cement ball clinker mill, Raymond cement clinker mill, vertical cement clinker mill, trapezium cement clinker mill and so on.
Cement plant is mainly composed of feeding part, discharging part, rotary part and transmission part which includes reducer, small transmission gear, electrical motor and electrical control. The hollow shaft is made of cast steel, the inner lining can be dismantled and changed, the rotary rack wheel adopts cast gear hobbing and there are wear-resisting lining boards inside the cylinder. This cement plant has stable operation and reliable working condition.According to the material types and the ore discharging methods, customers can choose dry type cement mill and wet type lattice cement mill.
Our company guarantee in the same quality the Hongxing machine production of cement mill lowest price, please send us a message for more details list of quotes
(Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
Φ2.2×7.0 | 21.5 | <25 | 32 | 380 | ZD70 |
Φ2.2×9.0 | 21.5 | <25 | 44 | 480 | ZD70 |
Φ2.2×9.5 | 21.5 | <25 | 45 | 480 | ZD70 |
Φ2.2×11 | 21.5 | <25 | 58 | 630 | ZD80 |
Φ2.2×13 | 21.5 | <25 | 58 | 630 | ZD80 |
Φ2.4x10 | 20.3 | <25 | 55 | 630 | ZD80 |
Φ2.4×11 | 20.3 | <25 | 62 | 710 | MBY710 |
Φ2.4×12 | 20.3 | <25 | 68 | 800 | MBY710 |
Φ2.4×13 | 20.3 | <25 | 68 | 800 | MBY710 |
Φ2.6×11 | 19.7 | <25 | 68 | 800 | MBY710 |
Φ2.6×13 | 19.7 | <25 | 82 | 1000 | MBY800 |
Φ3.0×9.0 | 18.2 | <25 | 78 | 1000 | MBY800 |
Φ3.0×11 | 18.2 | <25 | 95 | 1250 | MBY800 |
Φ3.0×12 | 18.2 | <25 | 100 | 1250 | MBY800 |
Φ3.0×13 | 18.2 | <25 | 108 | 1400 | MBY900 |
Φ3.2×11 | 17.8 | <25 | 110 | 1400 | MBY900 |
Φ3.2×13 | 17.8 | <25 | 128 | 1600 | MBY1000 |
Φ3.2×13 | 17.7 | <25 | 128 | 1600 | JS120-A |
Φ3.2×14 | 17.8 | <25 | 138 | 1800 | MBY1000 |
Φ3.5×11 | 17.1 | <25 | 160 | 1800 | MBY1000 |
Φ3.5×13 | 17.3 | <25 | 175 | 2000 | MBY1000 |
Φ3.8×12 | 17 | <25 | 175 | 2500 | JS130-C |
Φ3.8×13 | 17 | <25 | 190 | 2500 | MBY1100 |
Φ4.0×13 | 16.3 | <26 | 200 | 2800 | IS140-A |
Φ4.2×11 | 15.8 | <25 | 195 | 2800 | JS140-A |
Φ4.2x13 | 15.8 | <25 | 230 | 3150 | JS140-C |
Φ4.2×14 | 15.6 | <25 | 252 | 3550 | JS150-B |
Φ4.2×15 | 15.6 | <25 | 270 | 4000 | JS160-B |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
