Feeder Machine

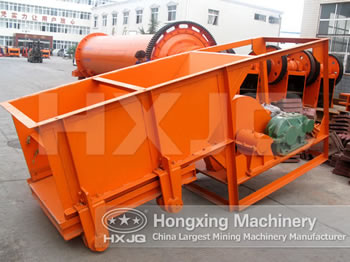

The GZD series of chute feeder is made up of the feed trough, vibration exciter, spring and bearing drive.
The GZD series of chute feeder is made up of the feed trough, vibration exciter, spring and bearing drive.
The GZD series of chute feeder is made up of the feed trough, vibration exciter, spring and bearing drive. And the vibration source is vibration exciter which is made up of two eccentric shafts including the active and passive, and the gear vice composition driven by the motor through v-belt shaft meshes the driven shaft rotation driven by the drive shaft gear in a contrary orientation in order to reach the purpose of making the materials moving stable and continuous.
Chute feeder not only can be set up on the ground but also lifted in the warehouse unloading ore at the mouth. Backplane makes reciprocating motion, the stroke time is 20-60 times/min, stroke is 20-200 mm. Stroke may be appropriately adjusted by the driving device-eccentric wheel and the eccentricity is half a stroke. According to some mill practice, when feeding viscous minerals, eccentricity should not be less than 30 mm. Feeder trough width is about 2-2.5 times of the largest feed particle size. The largest feeder trough can meet the particle size of less than 500 mm to the iron ore mine.
Chute feeder is suitable to be used in ore beneficiation, coal, chemistry and other industrial departments and it is able to take out the granulate massive materials from the storage bin and send them to different types of material receiving devices, but it is not suitable for feeding concentrate powders or other powdery materials.
Chute feeder is a kind of feeding machine whose chute base board moves back and forth. It can be lifted at the discharging mouth of the ore storage bin or installed on the ground and it is mainly used as the feeding equipment for jaw crusher which needs even feeding.
| Specification | Capacity (t/h) |
Motor Power (kw) |
| 600×500 | 10.5－25.5 | 4 |
| 980×1240 | 36－90 | 7.5 |
| 1000×1900 | 300 | 7.5 |
