Coal concentrator
1. Low energy consumption
2. Simple structure
3. Reliable working condition
4. Convenient operation
1. Low energy consumption
2. Simple structure
3. Reliable working condition
4. Convenient operation

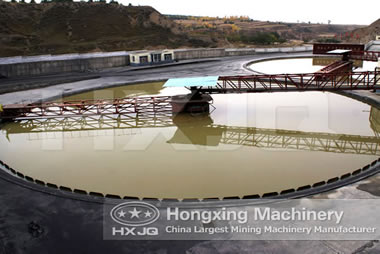

Coal concentrator, also known as the ore concentrate, applied to the concentrator concentrates and tailings dewatering process, which is widely used in metallurgical, chemical, coal, non-metallic mineral process, environmental protection and other industries.
Concentrated machine is characterized by: (1) add a flocculant to increase the sedimentation particle size of the solid, so as to speed up the settling velocity; (2) installate the tilt plate to shorten the mineral particles sedimentation distance, increase the size of the settlement;
| Specification | Concentration pond (m) | Deposit square(m2) | Harrow part | Motor | Processing capacity (t/d) | Total weight(t) | |||||
| Model | Specification | Inner diameter | Depth | Pond degree | Method | Height(m) | Rotation time(min/r) | Driving | Lifting | ||
| NZS-1 | Φ1.8m | 1.8 | 1.8 | 2.54 | Manual | 0.16 | 2 | Y90L-6 1.1KW | ---- | 5.6 | 1.8 |
| NZS-3 | Φ3.6m | 3.6 | 1.8 | 10.2 | Manual | 0.35 | 2.5 | Y90L-6 1.1KW | ---- | 22.4 | 4.1 |
| NZS-6 | Φ6m | 6 | 3 | 28.3 | Manual | 0.2 | 3.7 | Y90S-4 1.1KW | ---- | 62 | 10.2 |
| NZSF-6 | Φ6m | 6 | 3 | 28.3 | Manual | ---- | 3.7 | Y90S-4 1.1KW | ---- | 62 | 4.8 |
| NZ-9 | Φ9m | 9 | 3 | 63.6 | Auto | 0.25 | 4.34 | Y132S-6 3KW | XWD0.8-3 0.8KW | 140 | 8.1 |
| NZS-9 | Φ9m | 9 | 3 | 63.6 | Manual | 0.25 | 4.34 | Y132S-6 3KW | ---- | 140 | 7.1 |
| NZS-12 | Φ12m | 12 | 3.5 | 113 | Manual | 0.25 | 5.28 | Y132S-6 3KW | ---- | 250 | 10.5 |
| NZ-15 | Φ15m | 15 | 4.4 | 176 | Auto | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 350 | 24.7 |
| NZ-20 | Φ20m | 20 | 4.4 | 314 | Auto | 0.4 | 10.4 | JTC752A-44 5.2KW | Y112M-6 2.2KW | 960 | 27.5 |
| NZ-30 | Φ30m | 30 | 7.165 | 707 | ---- | 0.61 | 13.7 | Y100L1-4 2.2×2KW | YCJ132-S 1.5KW | ---- | 34.8 |
| NZS-45 | Φ45m | 45 | 4.636 | 1590 | Manual | ---- | 20 | JTC672A-44 5.2KW | YCJ160-S 2.2KW | 515 | 51.8 |
| NT-15 | Φ15m | 15 | 3.5 | 177 | ---- | ---- | 8.4 | Y132M2-6 5.5KW | ---- | 390 | 12 |
| NQ-18 | Φ18m | 18 | 3.5 | 255 | ---- | ---- | 10 | Y132M2-6 5.5KW | ---- | 560 | 11 |
| NQ-24 | Φ24m | 24 | 3.4 | 452 | ---- | ---- | 12.7 | Y160M-6 7.5KW | ---- | 1000 | 25.3 |
| NG-30 | Φ30m | 30 | 3.6 | 707 | ---- | 16 | Y160M-6 7.5KW | ---- | 1570 | 29.4 | |
| NJ-38 | Φ38m | 38 | 4.9 | 1134 | ---- | ---- | 10-25 | JZT252-4 11KW | Y160M-6 7.5KW | 1600 | 60.2 |
| NT-45 | Φ45m | 45 | 5.05 | 1590 | Auto | ---- | 19.3 | Y160L-6 11KW | ---- | 2400 | 63.6 |
| NTJ-53 | Φ53m | 53 | 5.07 | 2202 | ---- | ---- | 23.18 | Y180L-6 15kw |
---- | 6250 | 84.8 |
| NT-100 | Φ100m | 100 | 5.65 | 7846 | ---- | ---- | 43 | Y180L-6 15KW | ---- | 3030 | 204.6 |
