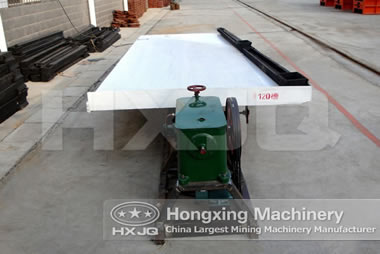

Hongxing concentrator table is mainly composed of eight parts as follows, spindle headstock, electromotor, adjustable slope, tabletop, bunker, water channel, raffles and lubrication system.
Hongxing concentrator table is mainly composed of eight parts as follows, spindle headstock, electromotor, adjustable slope, tabletop, bunker, water channel, raffles and lubrication system.
Henan Hongxing Mining Machinery Co., Ltd. is a professional concentrator table manufacturer with decades of producing experience and advanced technology. Hongxing concentrator table is mainly composed of eight parts as follows, spindle headstock, electromotor, adjustable slope, tabletop, bunker, water channel, raffles and lubrication system.
The reciprocating motion of concentrator table is finished through the crank connecting type transmission mechanism. Through belt transmission, the electromotor makes the belt wheel drive the crankshaft rocker to move up and down. When the rocker moves down, the bracket drives aft shaft and reciprocating lever moving backward. And the tabletop also moves backward. When the rocker moves up, due to the expansion force of spring, the tabletop moves forward.
|
Name
|
Unit
|
Grit concentrator table
|
Fine sand concentrator table
|
Sludge concentrator table
|
|
|
Dimensions
|
Length
|
MM
|
4450
|
4450
|
4450
|
|
Driving part width
|
MM
|
1855
|
1855
|
1855
|
|
|
Concentrate part width
|
MM
|
1546
|
1546
|
1546
|
|
|
Max.feeding size
|
MM
|
2
|
0.5
|
0.15
|
|
|
Feeding amount
|
T/d
|
30-60
|
10-20
|
15-25
|
|
|
Feeding thickness
|
%
|
25-30
|
20-25
|
15-25
|
|
|
Journey
|
MM
|
16-22
|
11-16
|
8-16
|
|
|
Frequency
|
F
|
15-48
|
48-53
|
50-57
|
|
|
Water quantity
|
T/d
|
80-150
|
30-60
|
10-17
|
|
|
Horizontal obliquity
|
Degree
|
2.5-4.5
|
1.5-3.5
|
1-2
|
|
|
Portrait obliquity
|
%
|
1.4
|
0.92
|
----
|
|
|
Table board corner
|
Degree
|
32-42
|
40
|
42
|
|
|
Concentrating square
|
----
|
7.6
|
7.6
|
7.6
|
|
|
Table board length ratio
|
----
|
2.6
|
2.6
|
2.6
|
|
|
Motor power
|
KW
|
1.1
|
1.1
|
1.1
|
|
