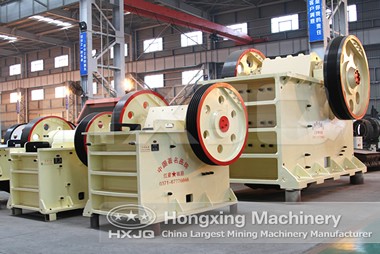

Stone jaw crusher

Total weight: 0.8 --15.6
Motor power : 5.5-- 55
Feed opening: 150×250 -- 300×1300
Max. Feeding size: 125 -- 250
Processing capacity: 1-3 to 16-105
Feature: simple structure, easy manufacturing, reliable working condition

Inquiry Us

The stone jaw crusher is a widely used quarry crusher for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These quarry crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.

As one of the most common mining equipment, stone jaw crusher appears earlier than other crushing machines. Jaw crushers (also called jaw breakers) are typically used as primary crushers, or the first step in the process of reducing rock, and are one of the main types of primary quarry crushers in a mine or ore processing plant.

Stone jaw crusher

Featured with a series of characteristics and functions, the jaw breaker is widely used in metallurgy, chemical industry, building materials, electricity, traffic and many other fields. Generally speaking, jaw crushers fall into two kinds: singletoggle jaw crusher and double-toggle jaw crusher. Meanwhile, Henan Hongxing also manufactures primary jaw crusher and aggregate jaw crusher.

Hongxing Machinery is a trusted and reliable brand for its high quality and good manufacturing of China jaw crusher. It specializes in producing stone crusher which is widely used in mining, quarry, material handling. Our company has been a manufacturer and exporter of stone jaw crushers for decades. Every feature of these quarry crushers has been carefully designed to provide superior quality and performance. Our jaw crushers have been sold all over the world with favorable price. As a responsible enterprise, we always stick to be your satisfying partner.

Technical Data

Model	Feed opening (mm）	Max.feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions （L×W×H） (mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
