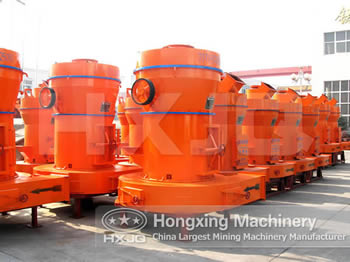

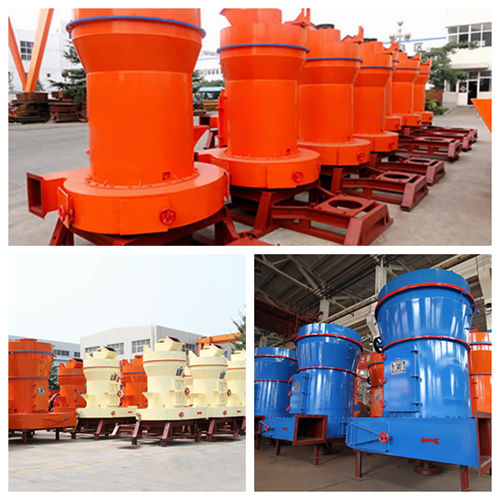

High strength raymond mill
High-strength Raymond mill is used for grinding the barite, limestone, kaolin, ceramics and slags, etc,
High-strength Raymond mill is used for grinding the barite, limestone, kaolin, ceramics and slags, etc,
High-strength raymond mill is used for grinding the barite, limestone, kaolin, ceramics and slags, etc, and it can process the materials with the hardness less than 9.3 Mohs and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industry, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-425 (1000 the finest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.
Working Principle Of High strength raymond mill:
.jpg)
In the main frame, a 100-1500 kg powered pressure spring is fixed on the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the raymond grinder under the same power condition and the production output is raised to a substantial degree.
When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.
| Parameter Model |
Raymond mill62 | High strength66 | High strength76 | High strength87 | High strength92 | High strength93 | High strength97 | Raymond mill4119 | Raymond mill4525 |
| Feeding size（mm） |
<15 | <15 | <20 | <25 | <25 | <25 | <25 | ≤25 | ≤30 |
| Size of finished product（mm） |
0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.044 | 0.173-0.044 |
| Shift output of different material fineness(t) |
0.6-9 | 1-20 | 1.5-25 | 2.8-33 | 3-36 | 3.5-40 | 4-52 | 8-78 | 16-176 |
| Rotate speed of central shart（r/min） |
274 | 190 | 170 | 161 | 148 | 140 | 130 | 105 | 82 |
| Diameter of pulverizing ring（mm） |
525 | 725 | 850 | 907.5 | 973 | 1006 | 1050 | 1400 | 1770 |
| Diameter of pulverizing ring（mm） |
150 | 210 | 250 | 270 | 300 | 300 | 310 | 410 | 450 |
| Height of pulverizing roller（mm） |
100 | 150 | 150 | 150 | 160 | 160 | 170 | 190 | 250 |
| Main Motor(kw) | 7.5 | 15 | 18.5 | 22 | 30 | 30 | 37 | 75 | 132 |
| Fan Motor | 4-5.5 | 4-11 | 4-15 | 4-18.5 | 4-22 | 2-22 | 4-37 | 4-75 | 4-132 |
| Analyzer Motor | 6-1.1 | 6-2.2 | 6-2.2 | 6-2.2 | 6-2.2 | 6-3 | 4A-5.5 | 4B-7.5 | 4A-18.5 |
