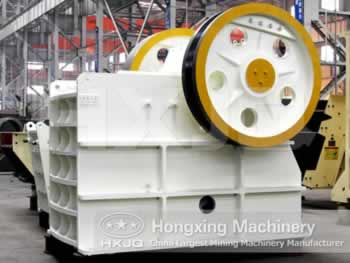

As a big brother of crushing equipment, China jaw crusher has always served as the major driving force among the crusher products as it has such advantages as simple structure, stable performance, easy and convenient examination and repair and big crushing ratio.
As a big brother of crushing equipment, China jaw crusher has always served as the major driving force among the crusher products as it has such advantages as simple structure, stable performance, easy and convenient examination and repair and big crushing ratio. The types of crushing equipment are increasingly expanding, but the position of jaw crusher machine can never be replaced. It is widely used in all kinds of production lines and completes the material crushing process in the crushing chamber formed by movable jaw plate and fixed jaw plate and the crushing chamber moves by stimulating the movement of two jaws of animals.
.jpg)
Service Commitment of Hongxing Jaw Crusher Supplier
1. Hongxing jaw crusher supplier provides technical training according to the user's condition, provides tracking service of quality for key customers, visits customers periodically, improves the function of products continuously to meet the customer’s requirements and improves the quality of products continuously.
2. Hongxing jaw crusher supplier provides the superior quality before-sale, sale, and after-sale service and also introduces detailed properties and operating requirements to customers before sale.
3. If you need technical service, Hongxing jaw crusher supplier will send professional technicians to attend the unpacking acceptance, guide the installation and adjustment until the equipment can work.

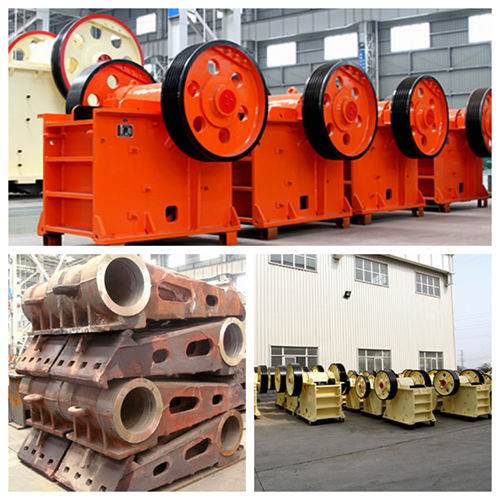

Single and double toggle jaw crushers are equipped with heavy duty fabricated plate frames with reinforcing ribs throughout. The components are of high strength design to accept high power draw. Manganese steel is used for both fixed and movable jaw. Heavy flywheels allow crushing peaks on tough materials. Double toggle jaw crushers may feature hydraulic toggle adjusting mechanisms. There are 3 types of jaw crushers according to the place, and the movable plate is fixed around the position.

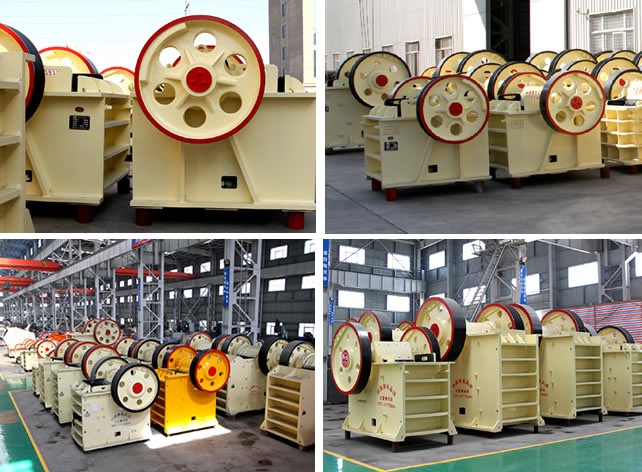

PEX series single toggle jaw crusher has the features of great crushing ratio, uniform sizes of promance. It can be used for crushing materials with compression resistance not more than 320Mpa. It is widely used in various industries such as mining, smelting, road and railway construction and chemical industry etc. PE series is used for primary crushing and PEX series is used for secondary crushing and fine crushing.
The Usage and Advantages of Mobile Jaw Crusher
1. Integrative full-set machine frame
2. Flexibility
3. Low material transportation fee
4. Direct and effective operation
5. Strong suitability and flexible configuration
6. Reliable performance and easy repair
Components of Mobile Jaw Crusher
1. vibrating feeder
2. feeder motor
3. feeder receiving hopper
4. jaw crusher
5. jaw crusher motor
6. standard belt conveyor
7. belt conveyor lengthened segment
Characteristics of Mobile Jaw Crusher
1. The working line of mobile jaw crusher is short. Different crushing equipment can be installed on the mobile underpan, so it has the features of short wheelbase and short turning radius. Mobile jaw crusher can move flexibly in the common road and working site.
2. The mobile jaw crusher can reduce the transportation fee. Mobile jaw crusher can crush the materials in the jobsite and avoid the middle link of transporting the materials to other place. It saves the transportation fee greatly.
| Model | Feed opening size(mm） | Max.Feeding size (mm) | Adjustment range of discharge port (mm) | Capacity(t/h) | Rotation speed of eccentric shaft(r/min) | Power (kw) | Dimensions（L×W×H） (mm) |
| PE 150×250 | 150×250 | 125 | 10-40 | 1-3 | 268 | 4P 5.5 | 760×700×860 |
| PE 200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 4P 7.5 | 915×780×990 |
| PE 200×350 | 200×350 | 180 | 18-60 | 3-10 | 276 | 4P 11 | 1000×914×1112 |
| PE 250×400 | 250×400 | 210 | 20-70 | 5-21 | 300 | 6P 15 | 1100×1032×1285 |
| PE 400×600 | 400×600 | 340 | 40-100 | 16-64 | 270 | 6P 30 | 1623×1736×1615 |
| PE 500×750 | 500×750 | 425 | 50-100 | 40-110 | 268 | 6P 55 | 1920×1850×1920 |
| PE 600×750 | 600×750 | 500 | 150-200 | 80-240 | 268 | 6P 55 | 2020×1850×1920 |
| PE 600×900 | 600×900 | 500 | 65-160 | 50-160 | 254 | 6P 55 | 2530×1900×2340 |
| PE 750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 245 | 8P 110 | 2680×2380×2785 |
| PE 900×1200 | 900×1200 | 750 | 100-200 | 220-380 | 208 | 8P 110 | 3470×2876×3330 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 400-1000 | 180 | 8P 160-245 | 4850×3220×3680 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1200 | 180 | 8P 280-380 | 5160×3660×4248 |
| PEX 150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 1170×1575×1030 |
| PEX 250×750 | 250×750 | 210 | 25-60 | 13-35 | 320 | 6P 22 | 1550×1730×1470 |
| PEX 250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 1580×2006×1390 |
| PEX 250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 1780×2214×1430 |
| PEX 300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 2210×2320×1723 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
