China Mobile Crushers
YGE series coarse crushing movable crushing station is the new stone crushing equipment, which is designed and promoted by Henan Hongxing Mining Machinery Co., Ltd.
YGE series coarse crushing movable crushing station is the new stone crushing equipment, which is designed and promoted by Henan Hongxing Mining Machinery Co., Ltd.

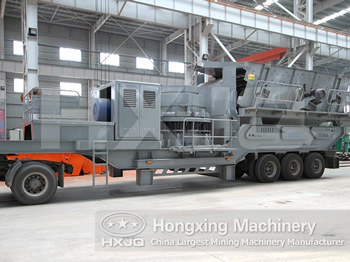

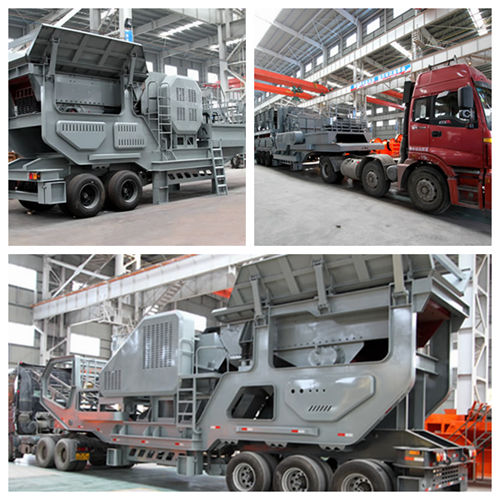

YGE series coarse crushing movable crushing station is the new stone crushing equipment, which is designed and promoted by Henan Hongxing Mining Machinery Co., Ltd. This machine expands greatly the coarse crushing field. Its design principle: Regard eliminating the barrier caused by the crushing jobsite and environment as the first important case,we supply the high-efficiency and low-cost hardware facilities.
The usage and advantages of coarse crushing movable crushing station
The integrative full-set machine frame
The integrative full-set machine frame eliminates the segregate components’ disadvantages, such as complicate jobsite, and long working time. The proper space arrangement of this machine frame improves the flexibility of jobsite residence.
Flexibility
The truck loading chassis of coarse crushing movable crushing station is high, and truck width is less than operation semi-trailer. The turning radius is short and convenient for traveling on the common road. It is more suitable for traveling on the rugged and bad environment in the jobsite. It saves time to enter the jobsite and supplies more flexible space and reasonable arrangement.
Low material transportation fee
The coarse crushing movable crushing station can crush the material in the first-line of the jobsite and avoid the middle link of transporting the material to other places. It saves the transportation fee greatly. Besides, the lengthened machine frame can send the material directly to the transferring truck wagon box and then leave the jobsite easily.
Direct and effective operation
The integrative series crushing station can be used independently; and it can also supply more flexible process configuration based on the material types, product requirement can satisfy the movable crushing and screening demand. The product organization and logistic transportation will be more directly and effectively to low the cost.
Strong suitability and flexible configuration
The coarse crushing movable crushing station can operate independently and can also work together with other machines aiming at the coarse crushing and fine screening. The side-discharging of discharge hopper supplies multimode configuration of screening and transporting materials. The integrative diesel generator can supply power to the machine frame itself as well as the process system configurations.
Reliable performance and easy repair
The coarse crushing movable crushing station includes the PE series jaw crusher. This jaw crusher has the high-efficiency, multi-function, excellent crushing product quality as well as the reasonable structure design and prominent crushing characteristics. It has the strong adoption ability for the transporting quantity, material particle size and abrasiveness. It brings long wear time and higher working efficiency. The reliable and stable quality establishes the perfect reputation among all the users domestic or abroad.
Excellent characteristics of coarse crushing movable crushing station
● PE series high performance crusher
● The integrative feeder and screen
● The integrative truck loading of belt conveyor, vibrating screen and crusher
● Direction-changing axis of traction for the road transportation convenience and deep jobsite penetration
● Truck loading installation supporter for the fast and convenience of equipment residence
● The integration of truck loading motor and control panel
Model | HX938HD86 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
Weight(t) | 39 | 57 | 55 | 65 |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
