Dry Rod Mill
Rod mill is named according to the steel bar inside the loading grinding barrel and there are dry type and wet type rod mills.
Rod mill is named according to the steel bar inside the loading grinding barrel and there are dry type and wet type rod mills.
Wet type rod mill is widely used in the artificial sand preparation plant, chemical plant and electric power department. Rod mill is named according to the steel bar inside the loading grinding barrel and there are dry type and wet type rod mills. Customers can choose them according to the specific situation.

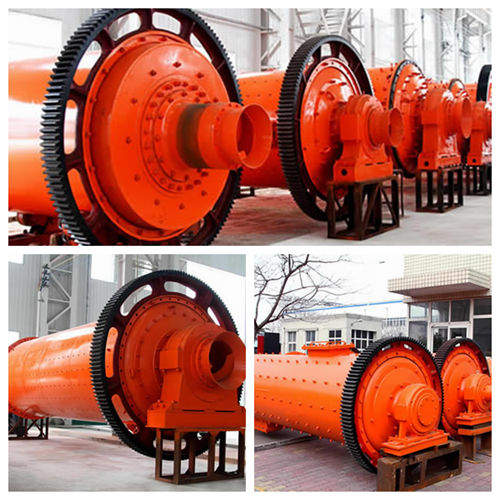

The wet type rod mill is mainly composed of small diameter and long barrel is driven by transmission machinery. The materials will be grinded in the barrel through the impact of the steel balls and the minerals. The finished products will be discharged from the end of the barrel. In the wet rod mill, in the wet grinding, the material is taken away by water flow.
.jpg)
The small curvature of the conical shell cover of the rod grinder makes the steel bar rotate in the mill. With larger diameter, the hollow shaft of discharging mouth not only makes it easily examined, but lowers the ore slurry surface in order to discharge fast. The product particle size is homogeneous.
Rod grinder is the most important equipment in the raw material grinding industry. It is mainly suitable for the fine grinding in the first open circuit grinding, especially for processing brittle materials. Although it can be used for grinding all kinds of minerals in ore dressing and building material departments, the application range of wet type rod mill is more smaller than that of ball mill, and ball mill can replace wet type rod mill in many cases.
| Model | Cylinder | Effective Volume (m³) |
Max.Rod Loading (t) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | |||||
| MBS(Y)-1530 | 1500 | 3000 | 4.5 | 8 | 27 | 90 |
| MBS(Y)-1532 | 1500 | 3200 | 4.8 | 8.5 | 27 | 90 |
| MBS(Y)-1830 | 1830 | 3000 | 6.7 | 14 | 23.7 | 155 |
| MBS(Y)-1832 | 1830 | 3200 | 7.2 | 15 | 23.7 | 155~180 |
| MBS(Y)-2130 | 2100 | 3000 | 8.8 | 18 | 21.4 | 210 |
| MBS(Y)-2132 | 2100 | 3200 | 9.6 | 20 | 21.4 | 210 |
| MBS(Y)-2136 | 2100 | 3600 | 11 | 23 | 21.4 | 245 |
| MBS(Y)-2230 | 2200 | 3000 | 10 | 21 | 19 | 245 |
| MBS(Y)-2236 | 2200 | 3600 | 12 | 25 | 19 | 245 |
| MBS(Y)-2430 | 2400 | 3000 | 12 | 25 | 19 | 280 |
| MBS(Y)-2436 | 2400 | 3600 | 14 | 29 | 19 | 320 |
| MBS(Y)-2730 | 2700 | 3000 | 15.5 | 32.5 | 18.4 | 355 |
| MBS(Y)-2736 | 2700 | 3600 | 18 | 38 | 18.4 | 400 |
| MBS(Y)-2740 | 2700 | 4000 | 20.6 | 43 | 18.4 | 480 |
| MBS(Y)-3040 | 3000 | 4000 | 25.7 | 54 | 17 | 630 |
| MBS(Y)-3230 | 3200 | 3000 | 21 | 44 | 16.4 | 500 |
| MBS(Y)-3245 | 3200 | 4500 | 32 | 67 | 16.4 | 800 |
| MBS(Y)-3642 | 3600 | 4200 | 38 | 79.5 | 15.8 | 1000 |
| MBS(Y)-3645 | 3600 | 4500 | 40.8 | 85 | 15.8 | 1000~1250 |
| MBS(Y)-3650 | 3600 | 5000 | 46 | 96 | 15.8 | 1250 |
| MBS(Y)-3660 | 3600 | 6000 | 54 | 113 | 15.8 | 1400 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
