Spiral Stone Washing Machine

AddTime:25/04/2013

      The machine rotor of spiral stone washing machine adopts a central structure, the helical blade is mounted on a central shaft by a gear unit connected to the central axis of the work. By means of solid particles of different specific gravities, and thus the type of liquid in the rate of settlement of the principle, a mechanical grading equipment. It is used in construction sites, gravel plants, precast plant and a large number of hydropower site for gravel off the mud, screening operations, and also it be used for ore sorting operation.

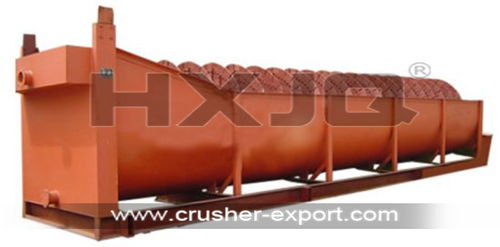

spiral stone washing machine

Internal structure and its installation:
Tank, reducer, motor, shaft, helical blade, bracket. Bracket welded on the central axis of the spiral blade is installed with bolts, and clamping the blade cannot deformed.
1.Stone washing machine is shipped to the fixed place, and user should check that if the parts are complete, whether damage should immediately check. Determine the machine intact before installation.
2.The use of units should be in accordance with the specific circumstances of the site to design the basic construction drawings stone washing machine, stone washing machine is securely installed on a solid concrete foundation.
3.The machine must be installed according to the installation requirements to ensure the tilt angle of installation.
4.The motor is mounted on the rail, in order to adjust the tightness of the belt pulley and motor pulley should be installed to ensure parallel.
5.Adjust the machine according to the above requirements.
